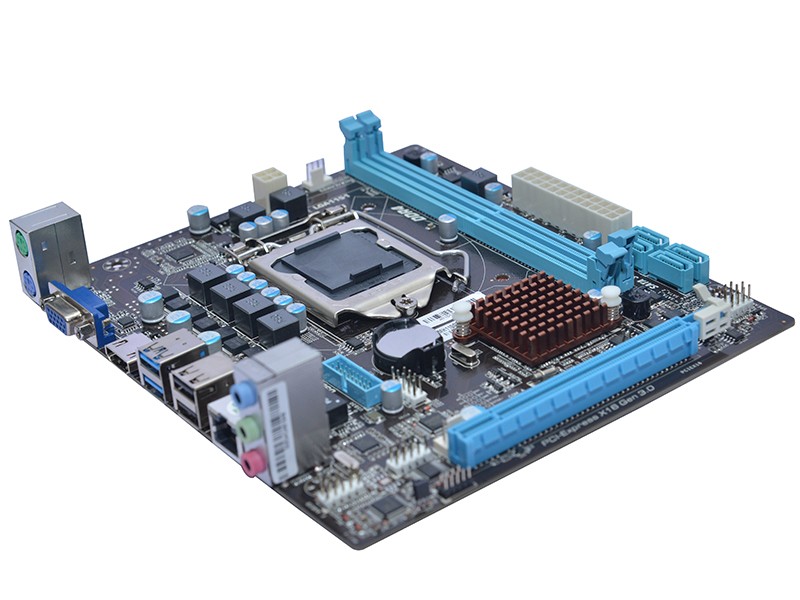

MH110GZ
MH110GZ
Please login to download the e-flyer.
Specifications
| Processor Support | Supports for Intel 6th generation intel core i7/i5/i3/Pentium processors in the LGA1151 package |
| Chipset | Intel H110 Chipset |
| Memory Support | 2 DDR4 1866/2133 DIMM slots(32GB Max) |
| LAN | Supports Realtek Gigabit LAN |
| Audio | Chip integrated by Realtek ALC662, Supports 6.0 channel audio out |
| Storage Interfaces | 4 SATA 3.0 6Gb/s ports |
| Back Panel I/O | 1 PS/2 mouse & keyboard port 1 VGA port 1 HDMI port 2 USB 3.0 ports 2 USB 2.0 ports 1 LAN Jack 3 flexible audio jacks |
| Onboard Connectors | 1 USB 3.0 connectors 1 USB 2.0 connectors 1 COM connectors 1 front audio connector |
| Slots | 1 PCIE x 16 3.0 slot |
| Form Factor | Micro-ATX (19.5 cm x 17 cm) |
| Mounting | 4 mounting holes |
